Model: BMZJ220
1. Material: Bracket: aluminum alloy; Bag: PVC; Pin: stainless steel
2. Folded size: 1494*204*146mm
3. Maximum working height of the tripod: 215cm; Minimum working height: 140cm
4. Rated load mass of the tripod: 300kg
5. Weight (including parts and carrying bag): about 30kg
6. Configuration: 3 head connecting pins, 3 leg adjustment pins, 1 manual winch (with base and 2 connecting pins), 1 safety hook, 1 foot strap, 1 tripod carrying bag, 1 winch carrying bag
7. Winch cable length: 30m, winch cable breaking strength: 1800kg;
8. Implementation standard: XF 3009-2020

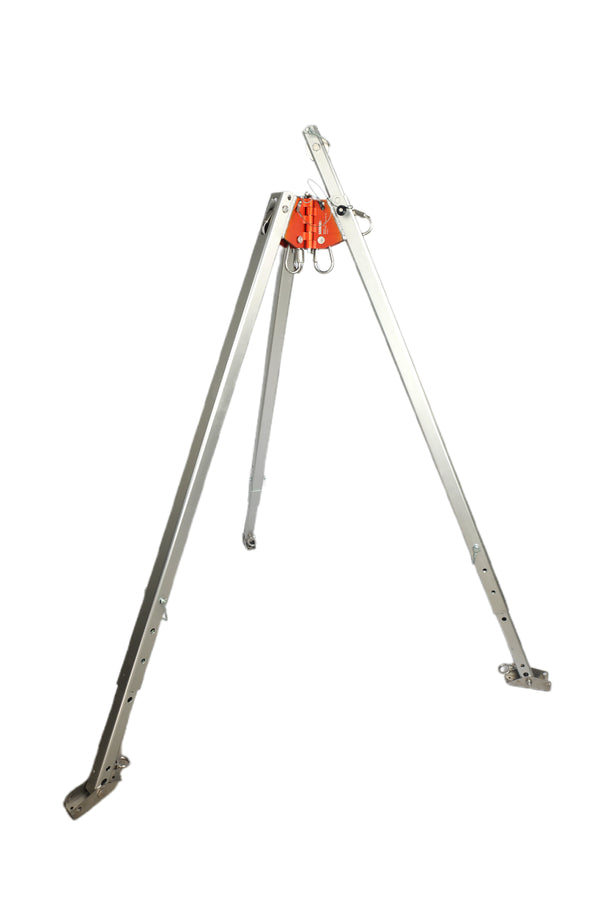

The folding rescue tripod can be set as a working fulcrum extending out of the cliff face on the vertical surface of the high place and cliff to meet the rescue operations at high places, cliffs and underground. The length of the legs is adjustable, and the bottom of the support feet can be switched between pointed and flat working modes. There are 3 load-bearing hanging points in the center of the head, and 1 bracket anchor hanging point on the outside of each leg. The stainless steel pulley can be assembled on the top of any leg, and the rope is drooped down with the top pulley as the center. The manual winch is installed on any support leg of the tripod with a pin. The winch has a self-locking function and is equipped with a wire rope.
Model: BMZJ220
1. Material: Bracket: aluminum alloy; Bag: PVC; Pin: stainless steel
2. Folded size: 1494*204*146mm
3. Maximum working height of the tripod: 215cm; Minimum working height: 140cm
4. Rated load mass of the tripod: 300kg
5. Weight (including parts and carrying bag): about 30kg
6. Configuration: 3 head connecting pins, 3 leg adjustment pins, 1 manual winch (with base and 2 connecting pins), 1 safety hook, 1 foot strap, 1 tripod carrying bag, 1 winch carrying bag
7. Winch cable length: 30m, winch cable breaking strength: 1800kg;
8. Implementation standard: XF 3009-2020
The folding rescue tripod can be set as a working fulcrum extending out of the cliff face on the vertical surface of the high place and cliff to meet the rescue operations at high places, cliffs and underground. The length of the legs is adjustable, and the bottom of the support feet can be switched between pointed and flat working modes. There are 3 load-bearing hanging points in the center of the head, and 1 bracket anchor hanging point on the outside of each leg. The stainless steel pulley can be assembled on the top of any leg, and the rope is drooped down with the top pulley as the center. The manual winch is installed on any support leg of the tripod with a pin. The winch has a self-locking function and is equipped with a wire rope.
