Style number: DJ200

Material: Titanium 2 (Accessories: Polyethylene, PE, Polyester)

Size: 208×58×18cm

Weight: About 7.5kg (excluding accessories), including accessories

About 10.5 kg

Effffective load-bearing: Horizontal 300kg; vertical 300kg

Used in rescue operations for the transfer of the wounded Titanium is characterized by low density and high mechanical strength.It can be used on rescue stretchers to achieve light weight, which is conducive to the transfer of wounded in rescue operations.According to the body shape of East Asian species,it has a width of 58cm,a width of 208cm,and the characteristics of a round head.It is more flflexible to operate in narrow spaces.

The pipe is formed into a elbow,the auxiliary pipe is fully welded,and the strength is high.There are 5 hanging points distributed on both sides and the middle of the tail. It is suitable for difffferent suspension methods, four-point suspension, stable and comfortable stretcher, three-point suspension Hanging, stretcher can quickly adjust the posture.
Equipped with durable poly-thin backboard on the back to make the legs more comfortable,13mm flflame-retardant lining,and four fast-dismountable fifixing straps.
The main pipe diameter is 24mm and it is easy to grasp.The frame connection adopts the main pipe thread connection and the bottom seven-character interlocking. The structure is strong and can be quickly assembled and disassembled.
This stretcher can be used in a variety of environments such as vertical,translation,and slope.
The stretcher adopts a split structure,and the two sections can be stacked together, which is more convenient for storage and transportation.

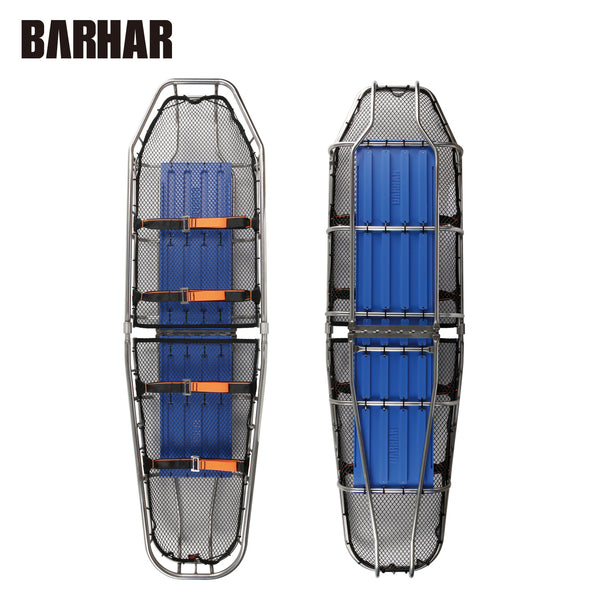

TITANIUM STRETCHER (SPLITTABLE BASKET) TITANIUM STRETCHER (SPLITTABLE BASKET)
