Model: JSJS300

1. Material: Bracket: aluminum alloy; Bag: nylon, EVA; Pin: stainless steel
2. Minimum working height of tripod: (1350±5) mm;
Maximum working height: (1950±5) mm (basic version), (2800±5) mm (standard version)
3. Rated load capacity of tripod: 300kg;
4. Weight:

Standard model: single backpack <20kg; total weight: ≤65kg
1# Backpack: equipped with 1 A-head, 1 adjustment head, 3 flat feet, 3 pointed feet, 2 latch bags, 17 latches;
2# Backpack: equipped with 6 brackets;
3# Backpack: equipped with 4 brackets, 3 protection belts, 6 safety hooks;
4# Backpack: equipped with 1 winch and 1 pulley device
Product configuration: pointed feet*3, flat feet*3, outer tubes*3, inner tubes*3, A-head*1, adjustment head*1, round force distribution plate 1, high-strength latch 19, latch bag*2, tightening flat belt*3, automatic main lock*6; equipped with transport bag: pole bag*2, head and foot bag*1, latch bag*2, winch 1, winch box 1, pulley 1.
5. Winch operation performance: Hand crank force of the handle is 160N; wire diameter is 5mm; rated lifting height is 21m, connected with 2 pins.
6. Implementation standard: XF 3009-2020 rescue tripod.

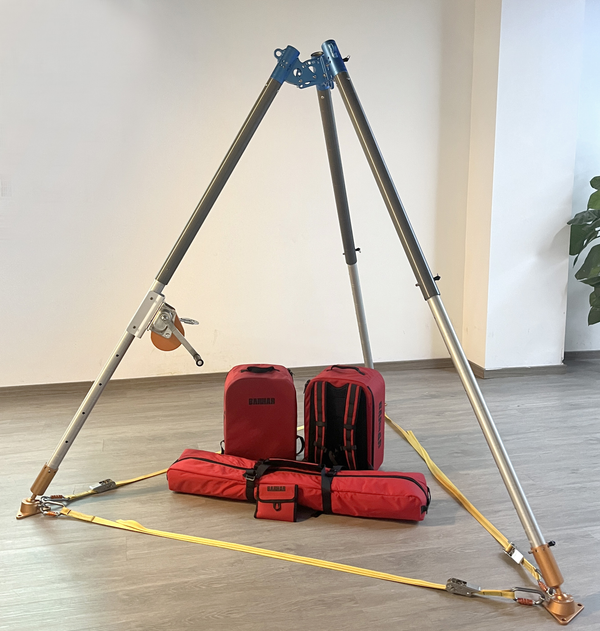

7. The rescue tripod is made of aluminum alloy seamless tubes, and can be built in combination modes such as tripod, A frame, easel leg tripod, horizontal A frame, monopod, etc. It is a rescue equipment commonly used by stretcher or rope technicians to enter and exit low rock corners, in order to make it efficient and avoid friction between ropes and rock corners and rock surfaces.
8. The tripod is made of high-strength aluminum tubes, seamlessly manufactured, high strength, not easy to deform, and 4 fixed anchor points are set on the top of the bracket, and all should be able to install universal pulley devices. There are 3 8kN anchor fixed connection points on the outside.
