Model: BMZJ320

Material: aluminum alloy, steel

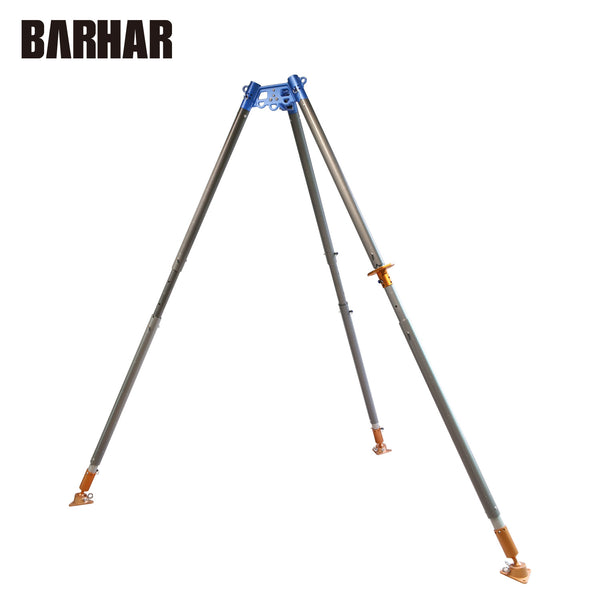

The multifunctional rescue tripod is an artificial high-fixed anchor point erection. It is a rescue equipment commonly used by stretcher or rope technicians to enter and exit low rock corners. The purpose is to make the entry and exit efficient and avoid the friction between the rope and the rock corner and rock surface to increase the dragging efficiency.
1. It is composed of accessories with the following specifications.
·Inner tube diameter: 50mm, length 1120mm, adjustment hole spacing 140mm, 3 tubes in total.
·Outer tube diameter: 60mm, length 1120mm, adjustment hole spacing 140mm, 3 tubes in total.
·R-type long pin specifications: 3/8-63mm, 9 pieces in total
·R-type short pin specifications: 1/2 -41mm, 3 pieces in total
·Head and foot bag size: 34*50*26cm, 1 piece
·Pole bag size: 113*15cm, 1 piece
·Latch bag size: 37*14cm, 1 piece
·A head: 1 piece, adjustment head: 1 piece
·Tightening strap: width 25mm, length 300mm, 3 strips in total
·O-type 2-section safety hook, strength 25kN, 6 pieces in total
·3 pointed feet, 3 flat feet
2. Multifunctional tripod combination parameters
·Minimum working height: 1350mm
·Maximum working height: 1950mm
·Effective working load of combined bracket: 300kg
·Combined bracket weight: about 26kg
·Strength of main hanging point of head A: 36kN
·Strength of outer anchor connection point: 8kN
3. Multifunctional tripod, suitable for combined use in different terrain types and environments
·Using high-strength aluminum tubes and manufactured with seamless technology.
·Can be erected on a single leg, portable and suitable for various types of terrain.
·Can be set up on two legs, strong and stable.
·Can be set up on a tripod, sturdy and stable, one of the legs can be adjusted up and down.
